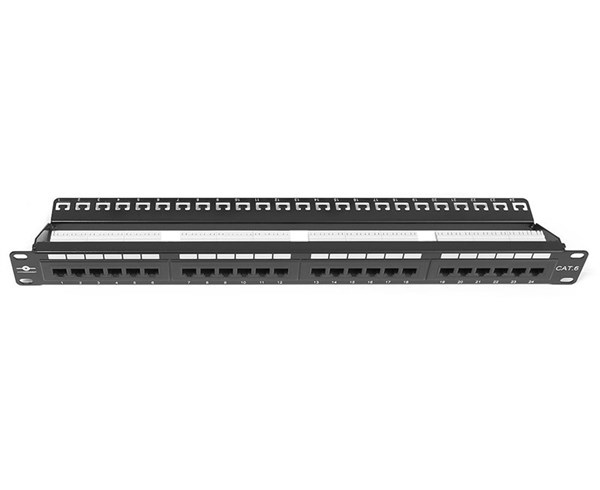

The HypaConnect HY series CAT6 Patch panel (UTP) is easy to install and terminate in any network environment. The rear cable support bar on the CAT6 patch panel provides a tie down and cable management point for LAN cable and the front patching field contains a labelling area for identifying connections. Available as a 1RU, 24 Port configuration, the HY series UTP CAT6 patch panel series provides great flexibility for your network. This patch panel is suitable for unshielded cable (U/UTP), which is terminated onto the patch panel using a standard IDC termination tool.

• CAT6 patch panel – UTP
• Category 6 unshielded, loaded patch panel with RJ45 ports
• Available in 1RU 24 port
• Suitable for 19’’ mounting formats
• Rear cable management support bar
• IDC connection for easy termination
• Supports 23AWG-24AWG cable
• Colour coding for TIA 568 A or B usage
• Steel powder coated panel
• Meets or exceeds ISO/IEC 11801 Ed.2.2, ANSI/TIA-568-C.2
• ACMA compliant – RCM
• Class E, 250MHz, 1G

CONNECTOR
Contact	Gold plated Bronze / Nickel
IDC	110 IDC Phosphor Bronze
Contact resistance	< 20m? IEC 60512-2-1
Voltage	? 1000V DC contact to contact
Cycles of insertion	1000 nom
Operating voltage	? 72V DC
