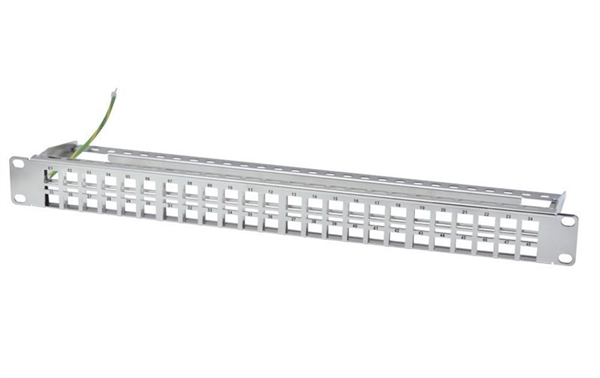

The Hypaconnect HY Series modular patch panel is easy to install in any network environment. The rear cable support bar provides a tie down and cable management point for LAN cable and the front patching fields contains a labelling area for identifying connections. These patch panels are unloaded and suit the HY Series modular jacks, including Category 6A STP, Category 6A UTP and Category 6 UTP, which are ordered separately. It provides a high density 48 port configuration in 1RU.

• Unloaded patch panel
• High Density 1 RU 48 port
• Suitable for19’’ mounting formats
• Rear cable management support bar
• Steel, non powder coated finish
• Suits HY and HZ Series modular jacks –Category 6A STP, Category 6A UTP and Category 6 UTP

• PGTC402F0150P.pdf
