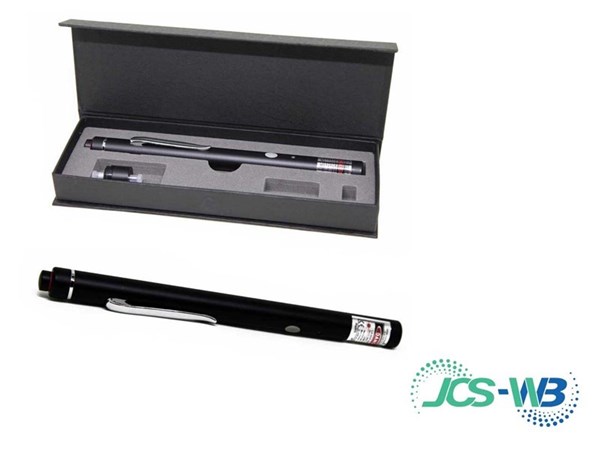

The JCS VFL-250 Fibre Checker is for field personnel who need an efficient and economical tool for fibre tracing, fibre routing and continuity checking in optical networks.

It finds breakpoints, poor connections, bending or cracking in fibre optic cables; and it can find faults in an OTDR dead zone and is used for end-to-end visual fibre identification.

The JCS VFL-250 is a Visual Fault Locator equipped with a 650-nm visible laser diode and can be operated in continuous or pulse modes for clear noticeable results.

• Clip pocket-size pen design
• Visual Fault Locator is equipped with a 650-nm visible laser diode
• One green LED indicator shows the operating mode
• Push button operate CW / Mod. (2.5 Hz frequency) / pause
• Protective cap for extra protection
• Power switch on the end for battery on / off
• 2.5mm Universal connector (1.25mm adaptor supplied)
